MTP® Cassettes

MTP brand cassettes come in a variety of connector styles and modes. From Multimode to Singlemode, from SC to LC, MTP brand solutions can be your solution to save space, time, and energy.

The cassette itself is comprised of four parts:
  • MTP brand adaptor(s) in back

  • MTP brand connectors to SC/LC fan out assembly inside the cassette

  • SC, ST, MTRJ (including keyed MTRJ), and LC (including keyed LCs) adaptors in the front

  • The cassette module body can be configured to multiple manufacturers for and fit factor.

By plugging an MTP brand cable into the back, you're lighting up 12 or 24 (with quad LC) connections. For the 24-fiber application, you can have either one 24-fiber MTP brand cable or two 12-fiber MTP brand cables (plugging into two ports).

The cassette can be snapped into any standard fiber optic patch panel including both rack mount and wall mount. All it takes is one port! The RAC-1X can hold three of these cassettes which could potentially give you 72 active LC connections using only three (or six) MTP brand cables. Normally, you would have a patch panel that has straight-through adapter panels and would need dozens of duplex patch cords plugging into the back of them. Clean up the clutter and increase your possibilities using MTP brand cassettes.

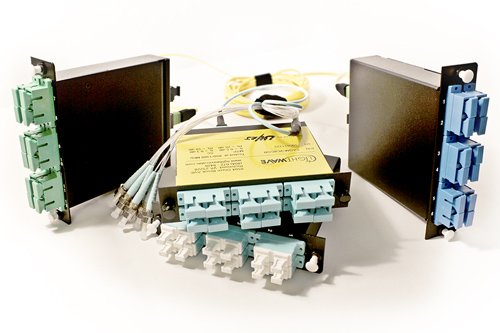

Cassette Examples

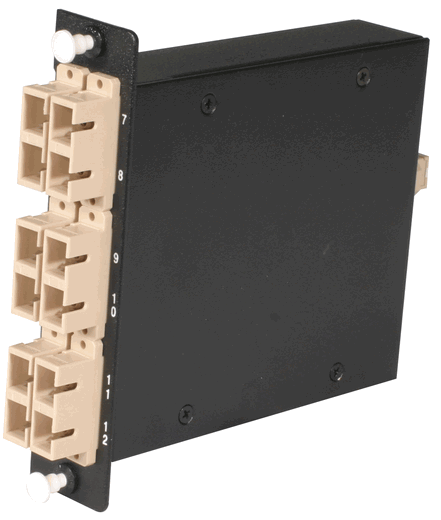

MTP® Fiber Cassette, Multimode 62.5/125 Micron 6 Duplex SC to 1 Male MTP (12-Fiber)

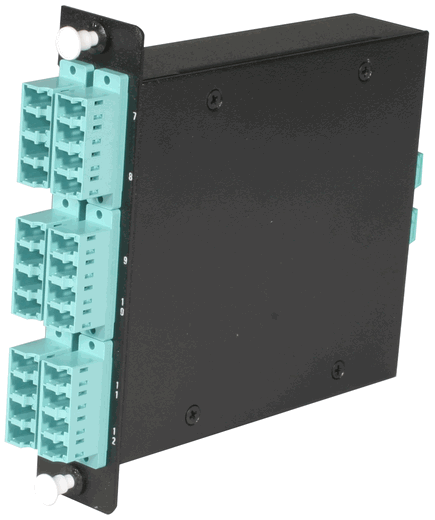

MTP® Fiber Cassette, 10 Gig Multimode 50/125 Micron 6 Quad LC to 2 Male MTP (24-Fiber)

MTP® Fiber Cassette, Singlemode 9/125 Micron 6 Duplex LC to 1 Male MTP, 9/125 (12-Fiber)

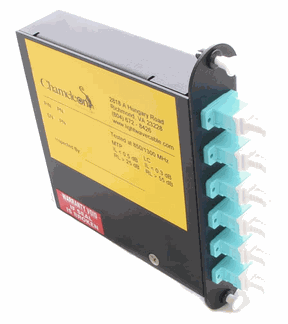

Chameleon Brand MTP® Cassette Module 12 Port LC/PC Multimode 50/125 10 Gig OM3

MTP Cassette, 6 Duplex SC to 1 Male MTP, 62.5/125 (12-Fiber) MTP Cassette, 6 Quad LC to 2 Male MTP, 10 Gig 50/125 Aqua (24-Fiber) MTP Cassette, 6 Duplex LC to 1 Male MTP, 9/125 (12-Fiber) Chameleon Brand MTP Cassette Module 12 Port LC/PC Multimode 50/125 10 Gig OM3

Details

  • Optical Return Loss: > 20 dB
  • Operating Temperature: -40° C to + 80° C
  • Durability: < 0.2 dB change (per EIA-455-21A), 1000 remates

Insertion Loss

  • 0.20 dB Typical (all fibers)
  • 0.50 dB Maximum (single fiber)

MTP Elite ® Performance

  • 0.10 dB Typical (all fibers)
  • 0.35 dB Maximum (single fiber) 1
  • As tested per ANSI/EIA 455-171 Method D1


More Information

Details

  • Optical Return Loss: > 20 dB
  • Operating Temperature: -40° C to + 80° C
  • Durability: < 0.2 dB change (per EIA-455-21A), 1000 remates

Insertion Loss

  • 0.20 dB Typical (all fibers)
  • 0.50 dB Maximum (single fiber)

MTP Elite ® Performance

  • 0.10 dB Typical (all fibers)
  • 0.35 dB Maximum (single fiber) 1
  • As tested per ANSI/EIA 455-171 Method D1

Specification Sheet
More Information

Details

  • Optical Return Loss: > 55 dB (8° Angle Polish)
  • Operating Temperature: -40° C to + 80° C
  • Durability: < 0.3 dB change (per EIA-455-21A), 500 remates

Insertion Loss

  • 0.25 dB Typical (all fibers)
  • 0.75 dB Maximum (single fiber)

MTP Elite ® Performance

  • 0.10 dB Typical (all fibers)
  • 0.35 dB Maximum (single fiber) 1
  • As tested per ANSI/EIA 455-171 Method D3

Specification Sheet
More Information

Details

  • Available in 62.5/125 Micron Multimode, 50/125 Micron Laser, Enhanced 10 Gig OM3, 9/125 Singlemode
  • Dimensions: 4.75 h x 1.25 w x 6.0 d
  • Weight: 1 lbs Fibers: 12 Total
  • Front: 6 X SC-Quad (2-Fiber) Rear: 1 X 12-Fiber MTP
  • Glass Type: Multimode or Singlemode 50-125 OM3 Laser Enhanced (LOMMF)

Insertion Loss

  • < 0.30 dB Singlemode (angled)
  • < 0.30 dB Singlemode (pc)
  • < 0.30 dB Multimode (pc)

Return Loss

  • > 65 dB Singlemode (angled)
  • > 55 dB Singlemode (pc)
  • > 25 dB Multimode (pc)


More Information

A Typical MTP® Cassette Drawing
